VIAVAC GBH

The VIAVAC GBH is designed for lifting and installing large and/or heavy glass elements of up to 1,800 kilograms in weight. Versatile configuration options allow easy installation of both large, long panels and small, narrow glass panels.

The VIAVAC GBH is equipped with a hydraulic tilting mechanism. In addition, rotary movement is motorized, and glass elements can easily be rotated through 360 degrees. Thanks to the quattro vacuum system, you can always make full use of the maximum lifting capacity. The glass lifter comes with both wired and radio remote control for remote suction and unloading.

We have also considered transportation issues. Using a specially designed transportation frame, the lifter can be easily transported, and no special equipment is required.

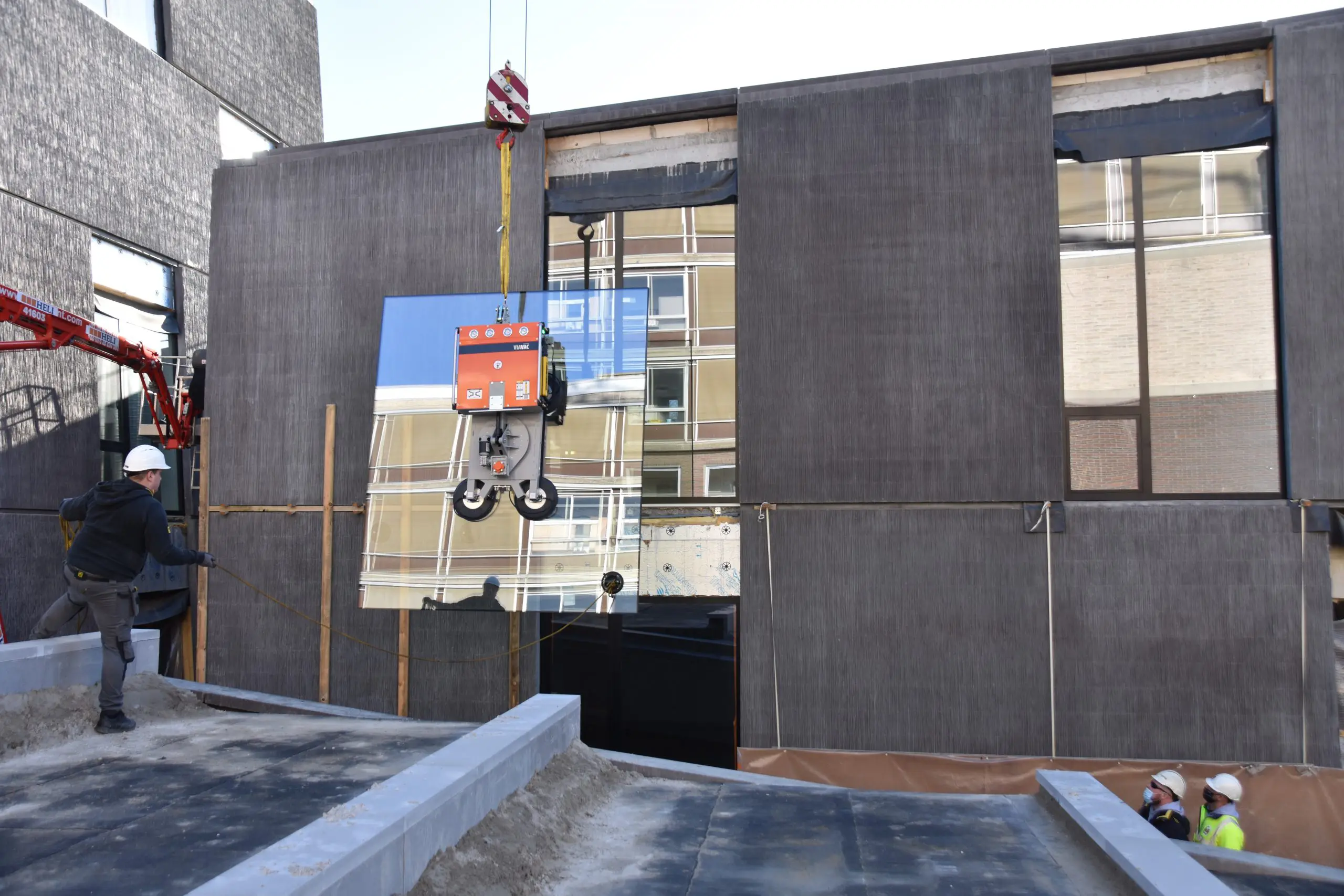

With the VIAVAC GBH, lifting and mounting heavy glass facade elements is no longer a challenge!

Features:

  • 90° hydraulic tilt mechanism.
  • 360° electric rotary mechanism.

  • For large and heavy glass panels up to 1,800 kg

    Product

    Adjustable lifting eye

    Vacuum gauge

    Red-green indication

    Battery indication

    Digital indication

    Wired remote control

    Quick couplings

    Connect vacuum hoses

    Suction pad

    Securing pin

    Electric turning mechanism

    Hydraulic tilting mechanism

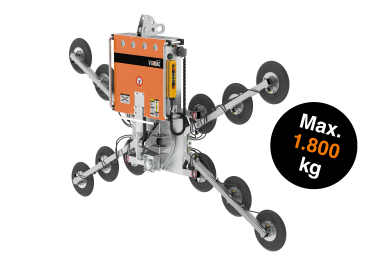

    Max
    1800
    kg
  • 90° hydraulic tilt mechanism and 360° electric rotary mechanism.

  • GBH for installing small glass elements up to 600 kg

  • GBH for installing long and small glass elements up to 600 kg

  • GBH for installing large glass elements up to 1,200 kg

  • GBH for installing large and long glass elements up to 1,200 kg

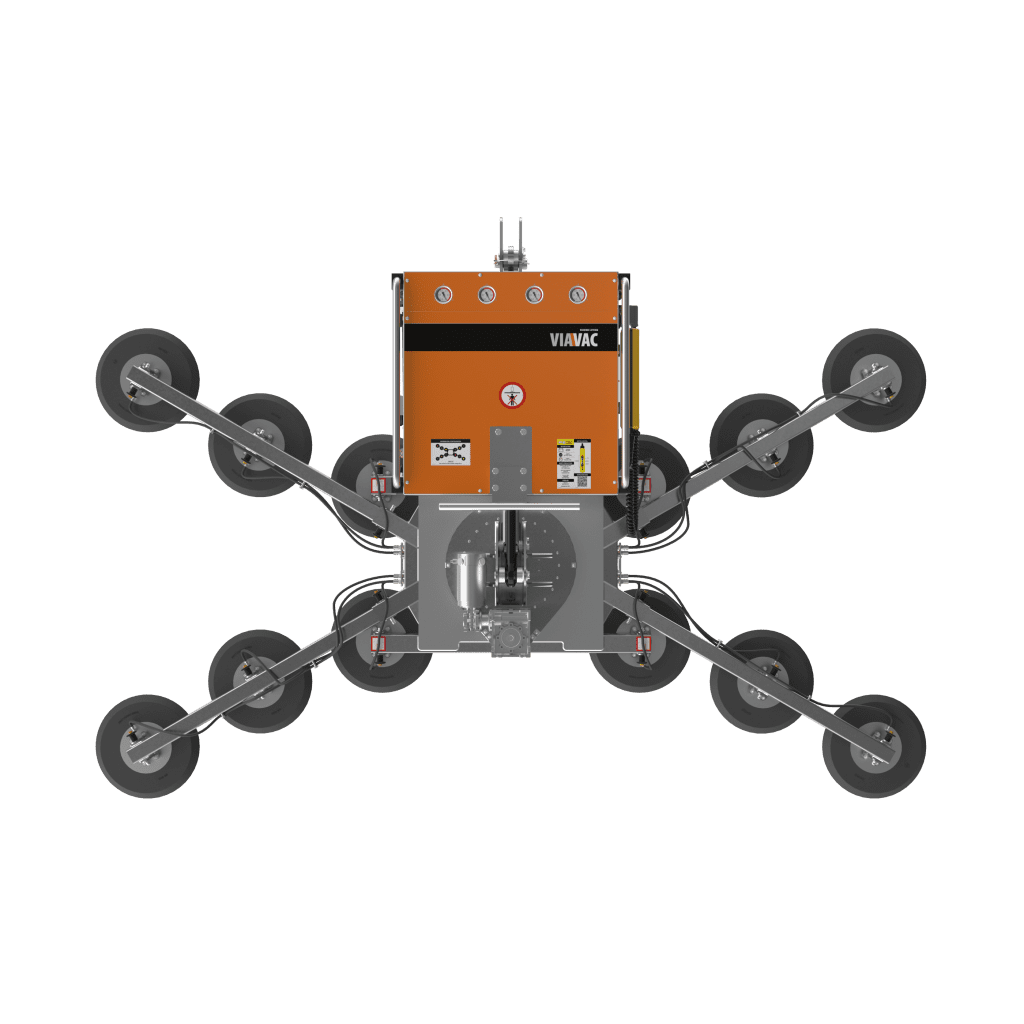

  • GBH for installing large glass elements up to 1,800 kg

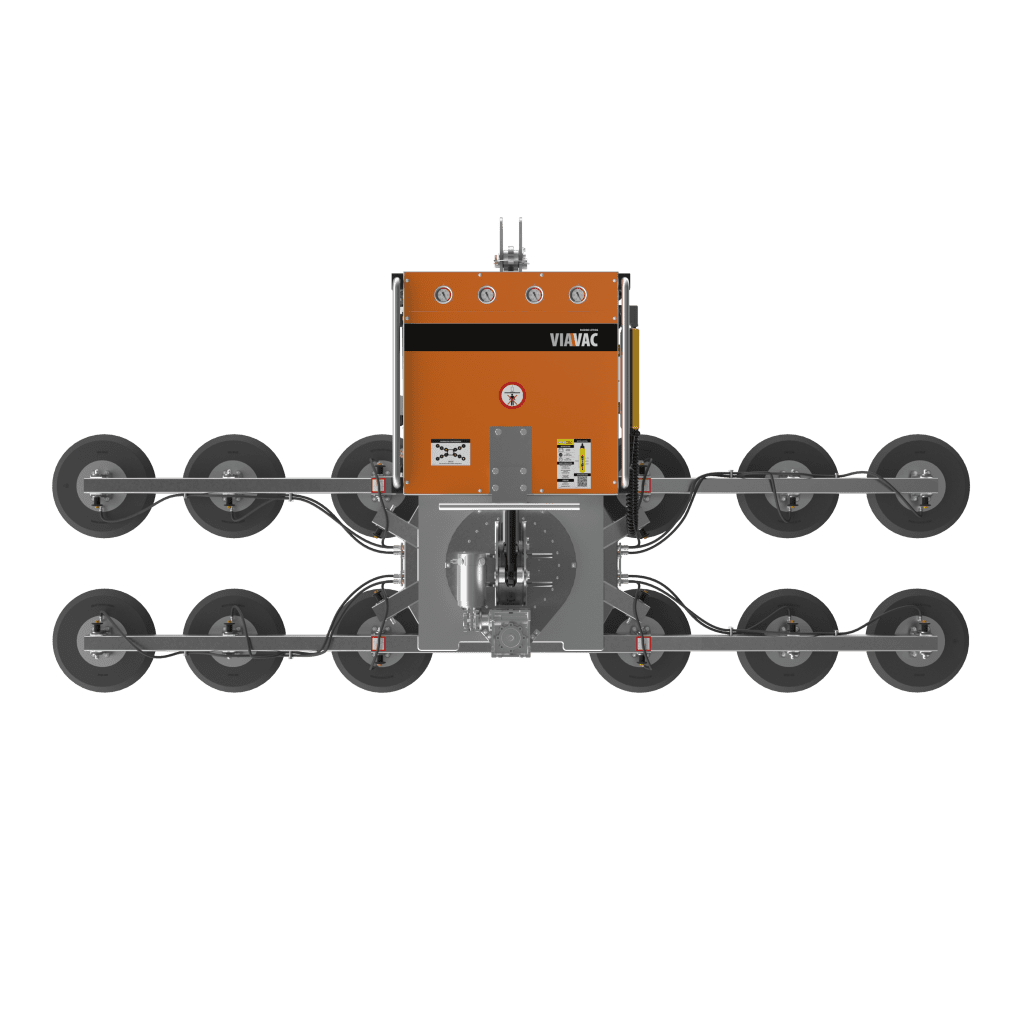

  • GBH for installing large and long glass elements up to 1,800 kg

  • Easy to transport

Request a quote:

Vacuum circuit:
Max. capacity:
Suction pads:
Own weight:

GBH-1800

Circuit gauge Circuit gauge Circuit gauge Circuit gauge
1.800 kg
12x Ø40 cm
350 kg

Types

  • c
    1.800 kg

    s
    12x Ø40 cm

    o
    350 kg
