CladBoy compact 4Flex

The versatile vacuum lifter for sandwich roof and wall panels

Installing roof or wall panels? With the CladBoy compact 4Flex, you can do both! The unique features of this lifter are its very compact size and its wide range of uses. With just one lifter, you can perform different types of installations. Fast and efficient. The CladBoy compact 4Flex can be easily transported in the matching transport carriage.

FEATURES

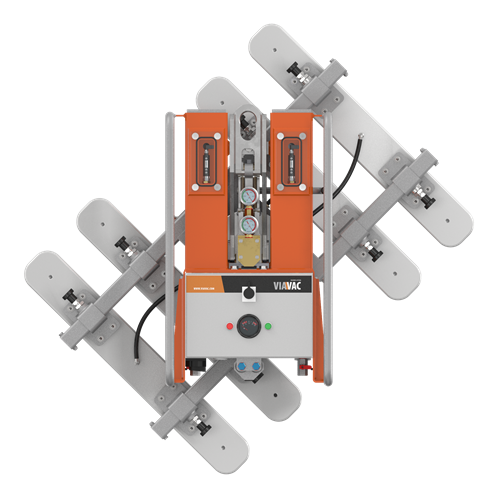

  • Rotatable through 360° with locking facility at each 90°

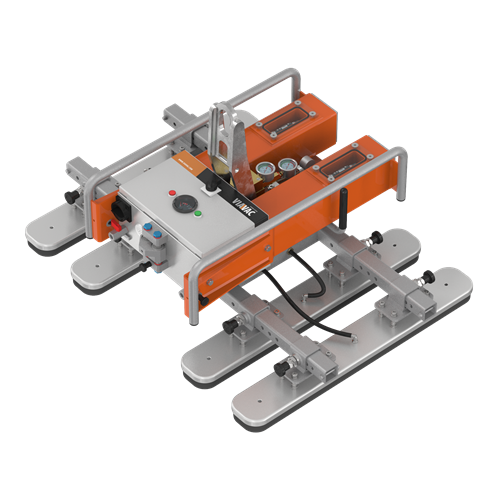

  • Tiltable through 90°

SPECIFICATIONS

Type GB/FX GB2/FX
Lifting capacity 320-400 kg 160-200 kg
Maximum panel length roof 8 m 8 m
Maximum panel length wall 10 m 10 m
Own weight 80-85 kg 80-85 kg
Vacuum circuit(s) Single-circuit Dual-circuit



Roof and wall installation

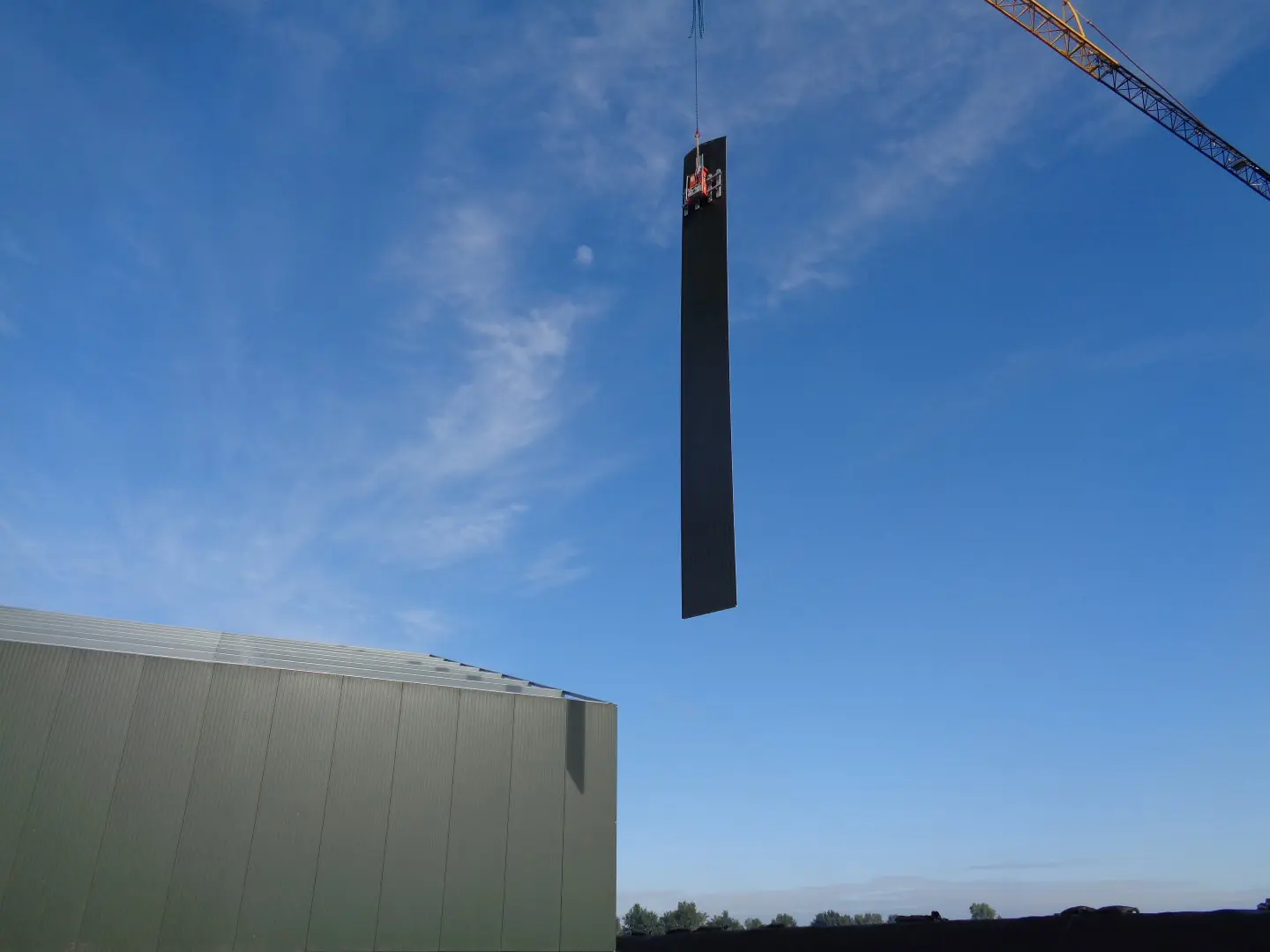

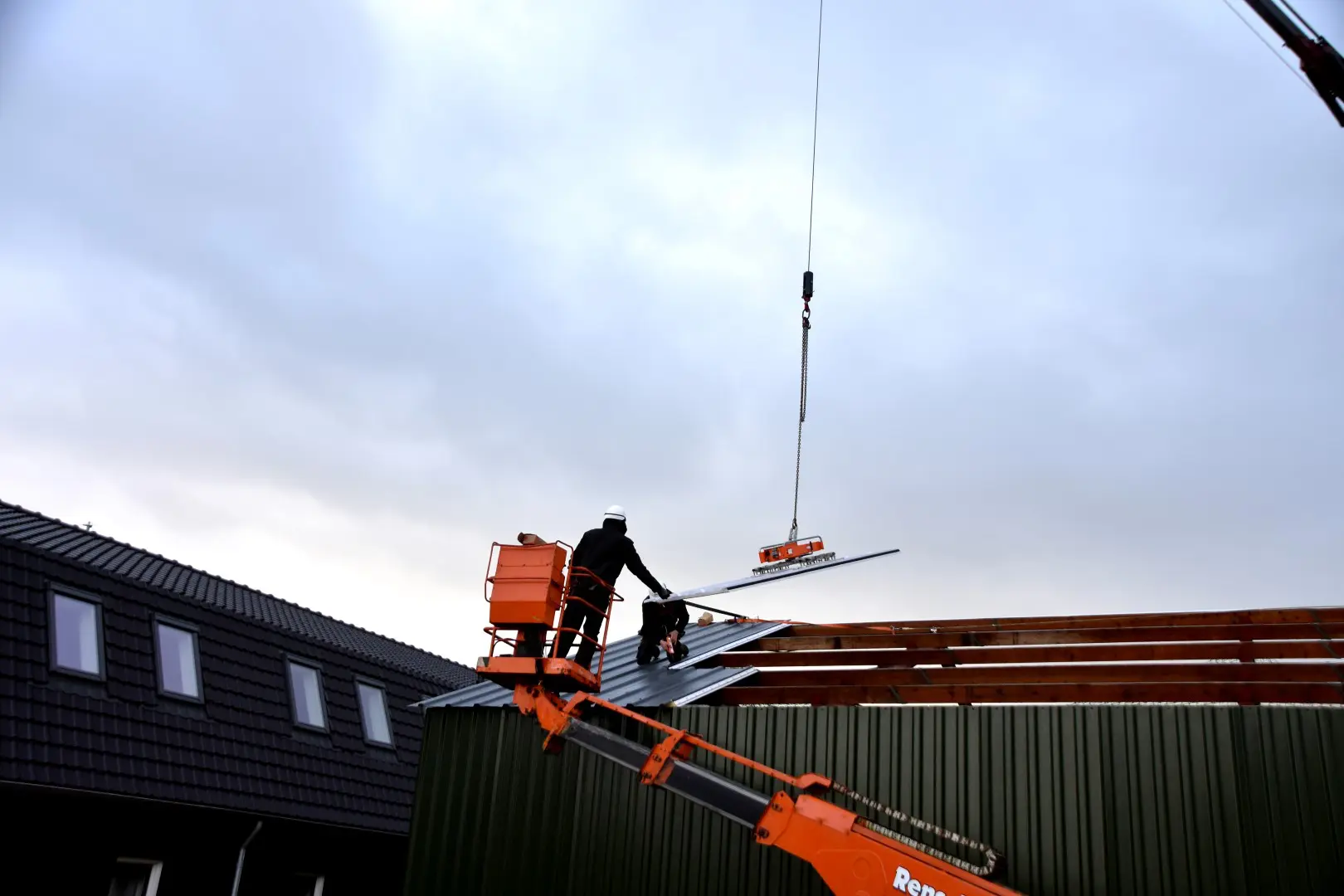

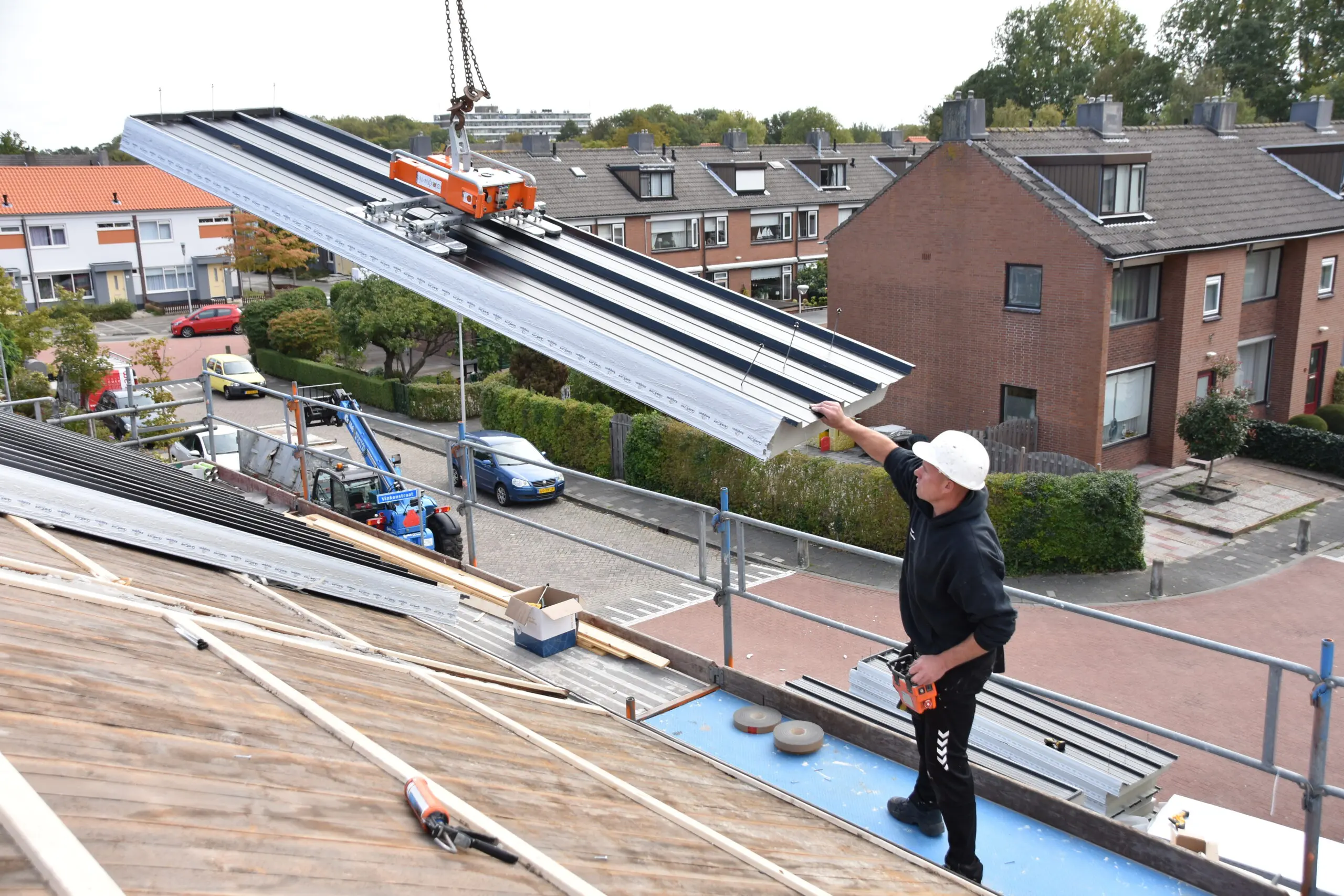

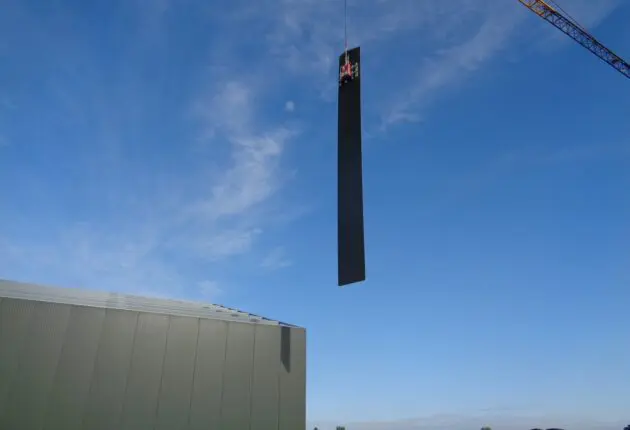

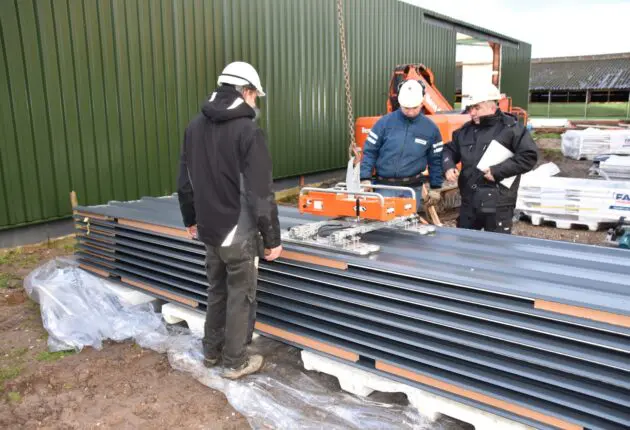

The CladBoy compact 4Flex offers multiple advantages. This lifter is suitable for the installation of sandwich roof panels up to a length of 8 meters, as well as profiled horizontal and vertical wall panels with a maximum length of 10 meters. The maximum lifting capacity is 200 kg with the dual-circuit safety system. The CladBoy compact 4Flex is also suitable for the installation of curved sandwich panels.

Suitable for all types of TR roof panels

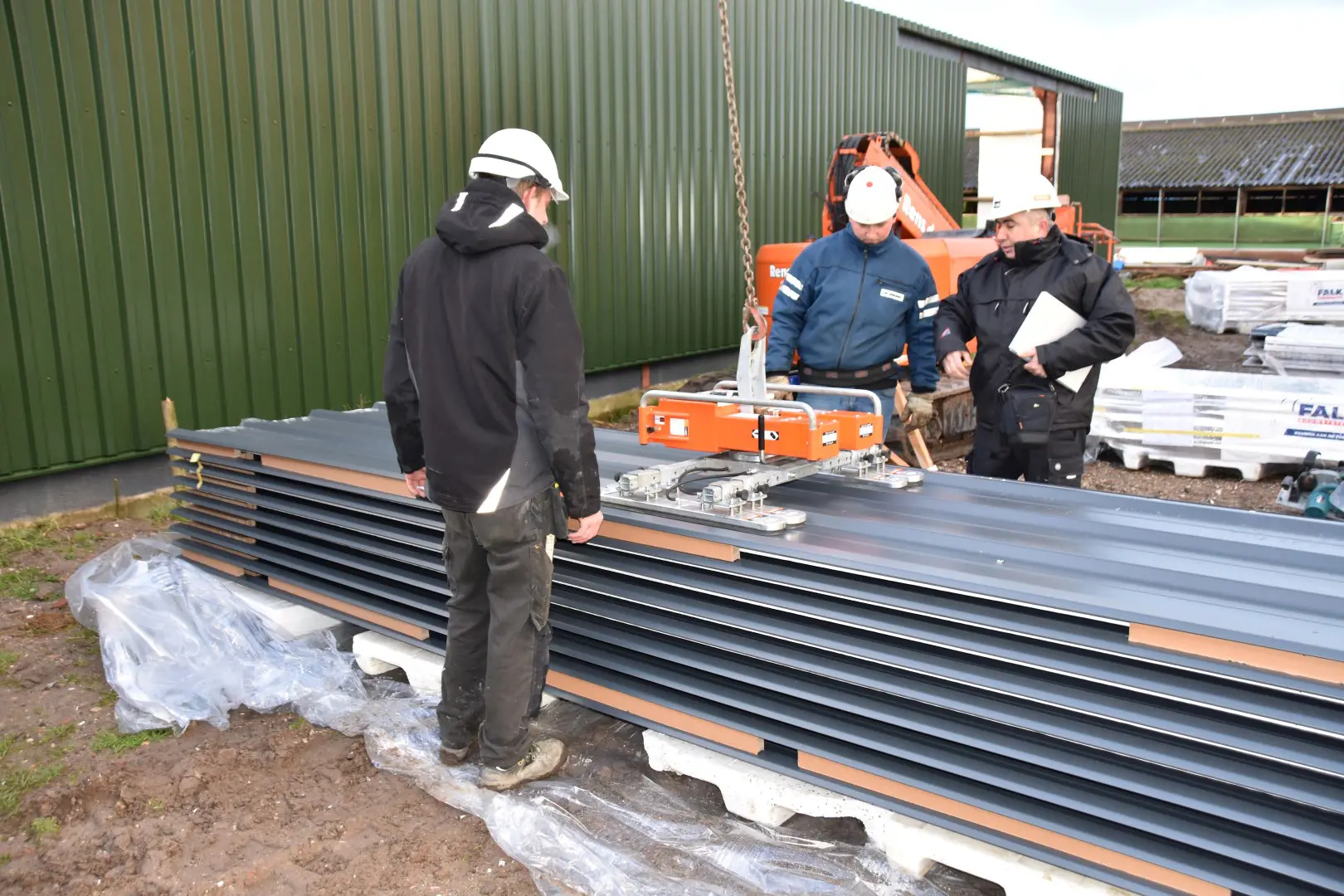

The width of the four elongated suction pads is adjustable, so they are suitable for any type of TR roof panels and flat wall panels. An added benefit is that this configuration needs to be set up once only. This contributes to a fast installation method. The suction pads are available in two different widths: 90 mm and 110 mm. The 90 mm-wide suction pads are suitable for sandwich roof panels of all well-known panel manufacturers.

Do you need more lifting capacity?

When more lifting capacity is required, the CladBoy compact 4Flex with single-circuit safety system can be used. This has a lifting capacity of up to 400 kg. When wall or roof panels become even heavier and longer, it is advisable to switch to the CladBoy.


  • The versatile vacuum lifter for installing roof and wall sandwich panels.

  • 360˚ rotation with locking facility every 90˚.

  • 90˚ tiltable.

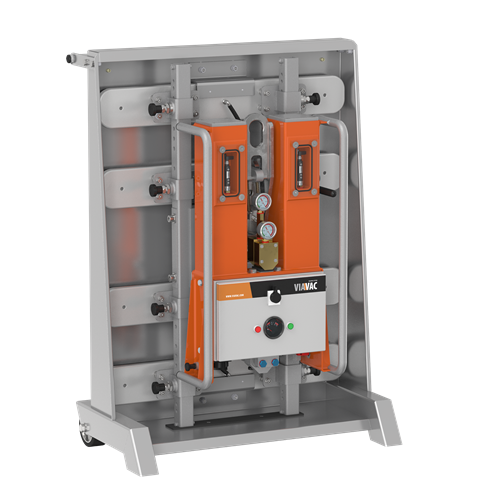

  • Easy to transport in the matching transport carriage.

Request a quote:

Vacuum circuit:
Max. capacity:
Suction cups:
Own weight:

GB-320/FX

Circuit gauge
320 kg
9x70 cm
80 kg

GB-400/FX

Circuit gauge
400 kg
11x68 cm
85 kg

GB2-160/FX

Circuit gauge Circuit gauge
160 kg
9x70 cm
80 kg

GB2-200/FX

Circuit gauge Circuit gauge
200 kg
11x68 cm
85 kg

Types

  • C
    320 kg

    S
    9x70 cm

    O
    80 kg

    V
    Single
  • C
    400 kg

    S
    11x68 cm

    O
    85 kg

    V
    Single
  • C
    160 kg

    S
    9x70 cm

    O
    80 kg

    V
    Double
  • C
    200 kg

    S
    11x68 cm

    O
    85 kg

    V
    Double
