CladBoy compact
The handy lifter for interior and exterior wall panels

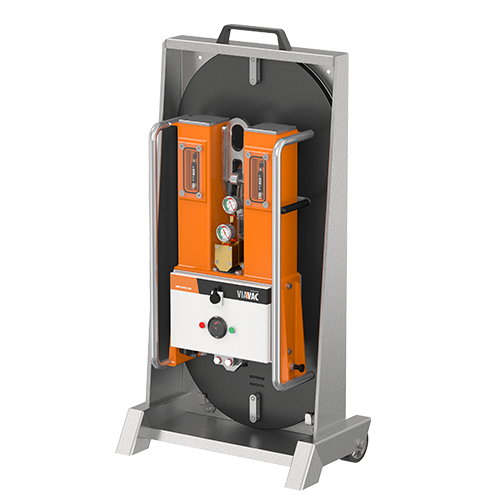

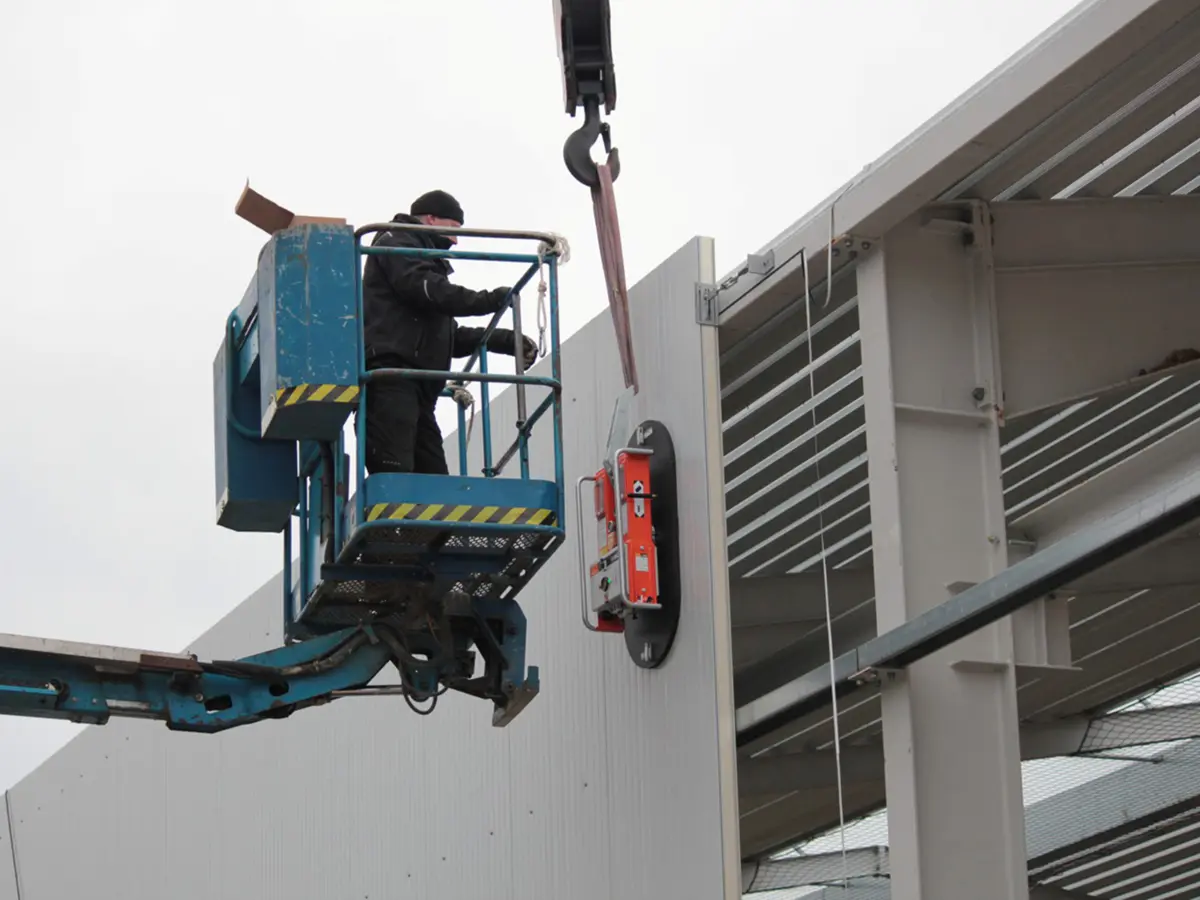

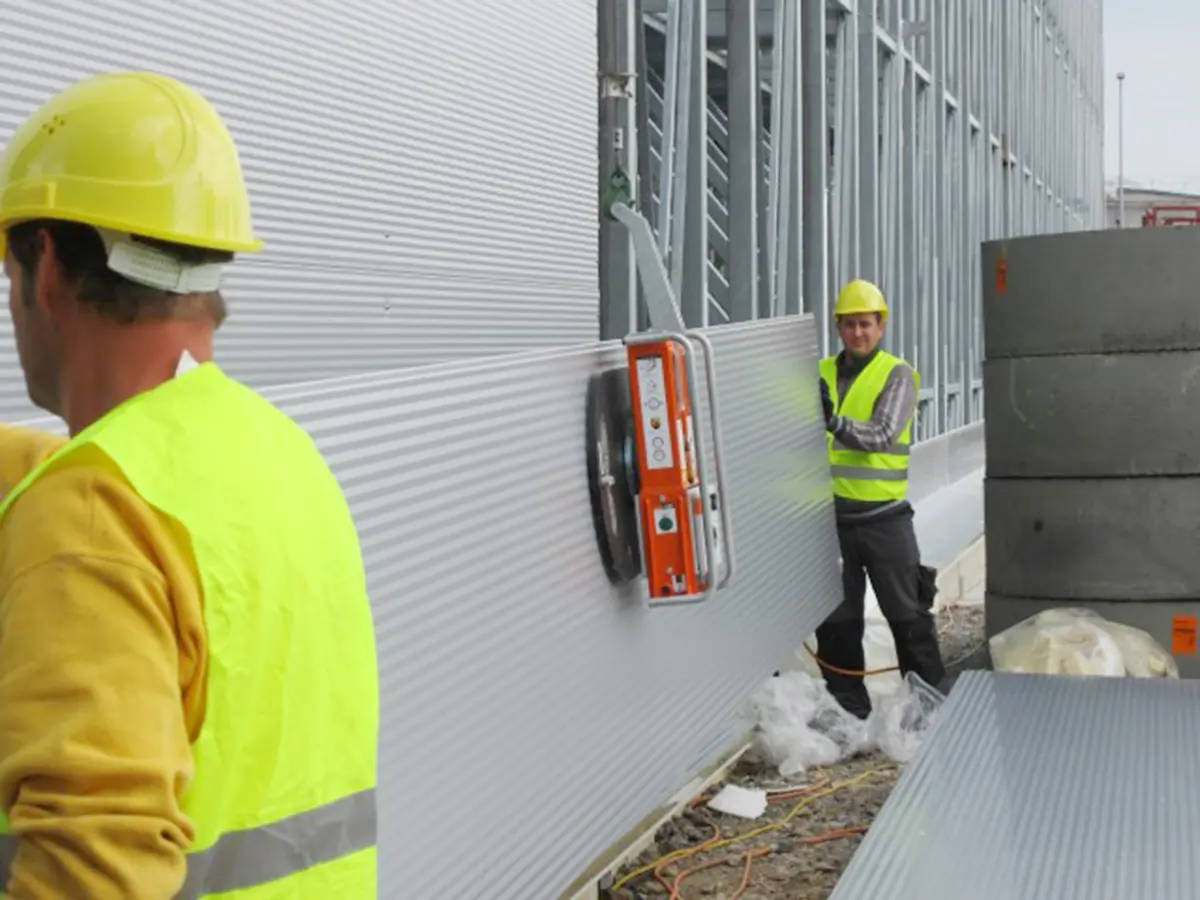

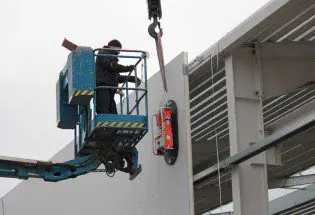

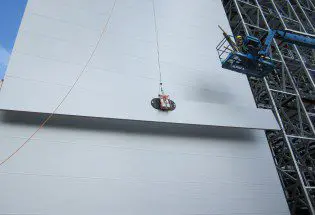

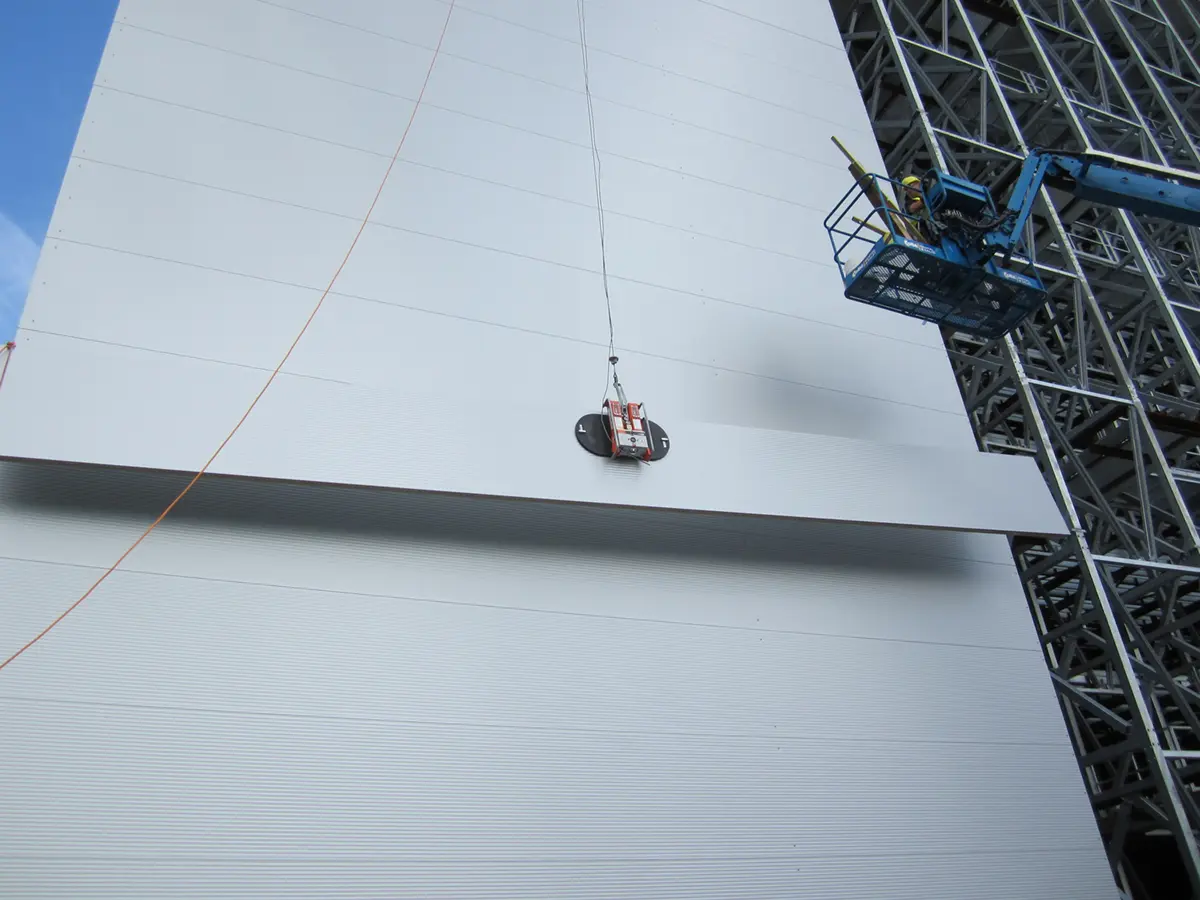

The CladBoy compact lives up to its name. It is a very compact lifter for the installation of sandwich wall panels in a fast and efficient way. And this lifter is also very versatile. For fast, easy, and hassle-free installation of horizontal and vertical wall panels. This handy lifter can be used both indoors and outdoors, and is easily transported in a passenger car. The CladBoy compact comes with a matching transport carriage. Not surprisingly, our customers love this vacuum lifter.
FEATURES

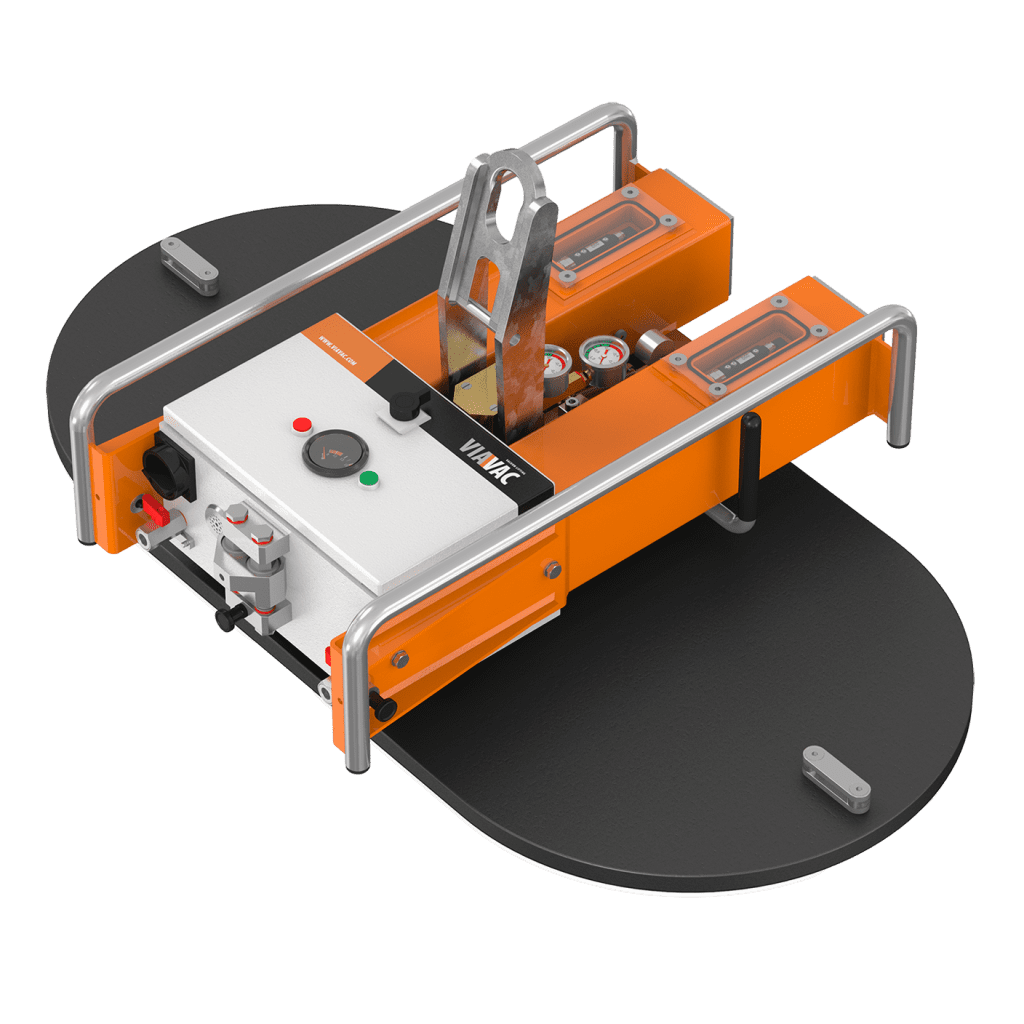

- Rotatable through 360° with locking facility at each 90°
- TTiltable through 90°
SPECIFICATIONS
Type | GB | GB2 |
Lifting capacity | 500-750 kg | 250-375 kg |
Own weight | 50-65 kg | 60-70 kg |
Vacuum circuit(s) | Single-circuit | Dual-circuit |
Lifting capacity
The CladBoy compact is suitable for the installation of sandwich panels up to a weight of 750 kg or a length of 12 meters. The lifter is also equipped with a single- or dual-circuit safety system. The battery has a charging time of about six hours, after which you can work with it all day without problems.

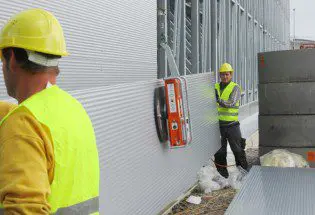

Installing interior wall panels

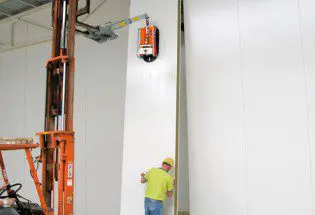

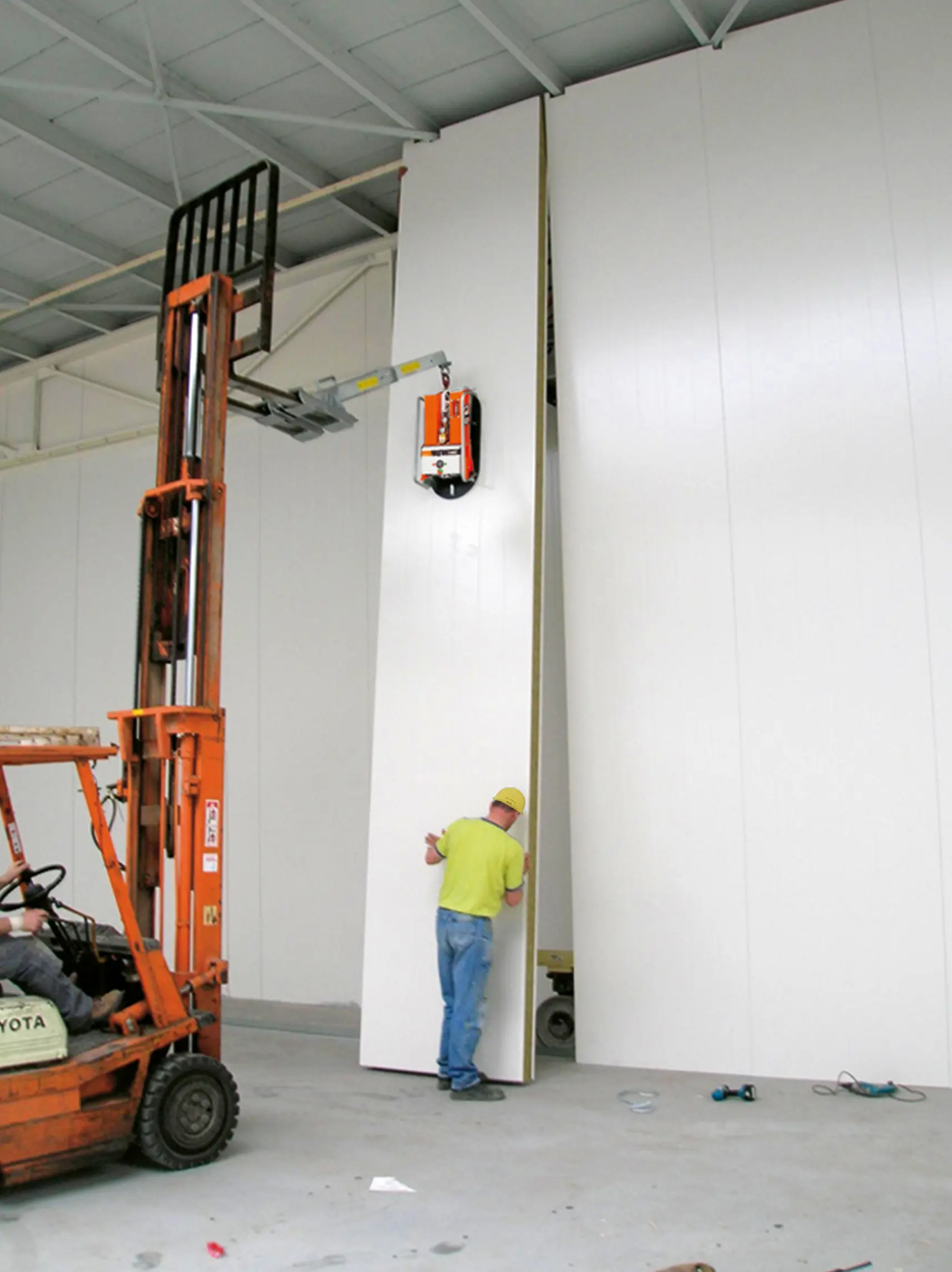

This robust and solid lifter is well suited for the installation of inner walls or under an overhang. For this purpose, the CladBoy compact is often used together with the CraneArm. With the combination of CladBoy compact, forklift, or telescopic handler and the CraneArm, the installation of panels is a piece of cake.
Radio remote control
SomsThere can be situations where the vacuum lifter is difficult to reach, and it is difficult to turn off the vacuum. In these cases, the optional wireless radio remote control offers a solution. The radio remote control has a safety code and is equipped with two buttons for control. The push buttons on the unit itself are still there, allowing for manual operation. The radio remote control is applicable only to the CladBoy compact with dual-circuit safety system.
Special application or use for the installation of dormer windows
In addition to wall panels, dormer windows can also be lifted quickly and easily with the CladBoy compact. The vacuum lifter simply attaches directly onto the flat roof structure, allowing prefabricated dormer windows to be lifted onto the roof in their entirety. This eliminates the need for separate lifting points or the tightening of lifting slings.
