Glass lifter “VIAVAC GBH-1800” now also available abroad
After a successful introduction of our latest glass lifter, VIAVAC GBH-1800, in the Netherlands, it is now also working hard across the border. For the renovation and extension of the Academy of Fine and Applied Arts in Belgium, the VIAVAC GBH-1800 has been successfully deployed, and the installation process is almost complete.
After all the concrete facade structures were finished, the large, 900 kg glass elements were installed. A job perfect for the VIAVAC GBH-1800! The equipment not only had to have the ability to lift heavy glass elements but also rotate the elements while lifting. In fact, the glass elements were delivered horizontally and had to be installed vertically that same day.
The VIAVAC GBH-1800 rotated the 900 kg glass elements easily, thanks to its electric rotary mechanism. This rotary mechanism is controlled by a compact radio remote control. The tilt-and-turn mechanism saved physical effort on the part of the installation team, as they did not have to do this manually.
Renovation of the building was much needed, as the building dates back to 1978. The building is expected to be completed this summer, and young and old will once again be able to express themselves artistically through dance, painting, sculpture, singing, acting, music and much more.
One vacuum lifter for installing wal land roof panels

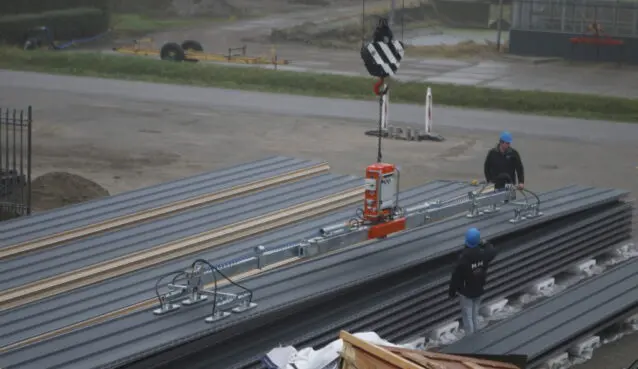

A frequently used configuration that we have rarely shared. The images above show the CladBoy CB5 – with a dual vacuum circuit – lifting a 12 meter long vertical wall panel. This configuration has been used by M3 Ruimtebouwers for their project. More about this project
Double vacuum circuit
The CladBoy CB5 has a double vacuum circuit. Which means that the use of extra safety straps is not mandatory on the construction site. Not having to use the straps simplifies and speeds up the installation. Above all, it ensures that the men (and woman) on the construction site can lift and assemble safely.
Wall and roof
The CladBoy is not only used by M3 Ruimtebouwers for mounting wall panels, but also for installing steel roof plates. A conscious choice was made for a modular vacuum lifter, so that the project could be realized by only using one machine.
The utility building is located along the North Sea Canal in Amsterdam and is used as a terminal. Cocoa, among other things, is stored in the 30,000 m2 hall. Also, there is also an office space.
Construction new data center Facebook with VIAVAC vacuum lifters
Currently, the construction of the new Facebook data center is underway in Odense, Denmark. This data center will be one of the most advanced and energy-efficient buildings of its kind. The Dutch construction company TSV is participating in this project and using VIAVAC’s vacuum lifters.
For the construction of the enormous roof of the Facebook data center, several parties are using a variety of VIAVAC’s vacuum lifters. Specifically for this project, TSV purchased two new CladBoy CB4s, which are being used to install steel roof panels in this building.
Facebook’s decision to build the center in Odense was made because of the favorable climate. The company will save money on air-conditioning that would otherwise have wasted energy. With a surface area of 56,000 square meters, this is Facebook’s third data center outside the US. The servers in the data center will store pictures, videos and other information.
New CladMaster installs sandwich panels under grandstand

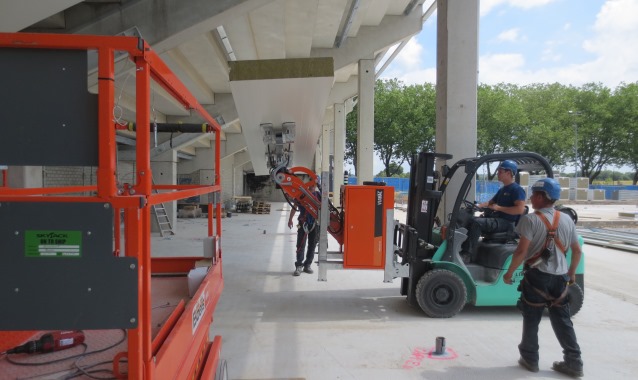

The new CladMaster was successfully deployed at the Geusselt stadium in the Dutch town of Maastricht. Kempen Cladding hired this vacuum lifter and installed sandwich panels with a core material of stone wool on the underside of the grandstand.
The MVV Maastricht football stadium was extended with a sports hall, for which a part of the space below the grandstand was used. To apply insulation to this space, approximately 300 insulation panels weighing 200 kilograms each were installed at an angle of 36° and up to a height of 14 meters on the underside of the grandstand.
The CladMaster is most convenient for this type of job; installed using a forklift, the panels can be transported and installed in an efficient and safe way.
Thanks to six hydraulically powered movements, the panels can be placed with millimeter-level accuracy. The movements can be proportionally operated at two speeds by radiographic remote control.
Thanks to the VIAVAC CladMaster, this job was finished on schedule and executed in compliance with all health and safety standards.
The roof of an existing warehouse was replaced and expanded at the same time. The old roofing was replaced by sandwich roof panels, after which the enlarged area was equipped with solar panels. This was all carried out using the CladBoy CB5.

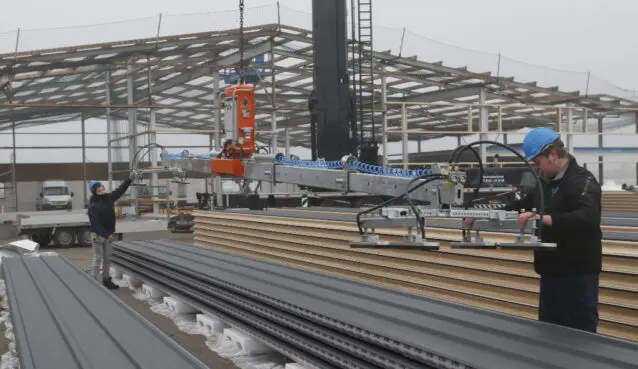

Using 21-meter-long panels, we were able to span the entire roof construction and did not need to adjust the existing supporting structure. Because the vacuum lifter has suction pads in several locations, the sandwich panels will not bend during lifting. Using the CladBoy CB5 with dual-vacuum technique, additional safety straps are no longer a requirement.
The installation of more than 1,200 m2 of roof panels was carried out by the construction company Lont. The mechanics using the VIAVAC vacuum lifter were very pleased with its convenience and speed.
In the middle of Moscow’s business center stands Europe’s highest skyscraper, the Federation Tower. During construction, the VIAVAC compact GB-750 was used to install glass panels. The construction of the 373.7-meter, ninety-five-floor tower, was completed in 2016.
Assembling the glass roof construction of the upper floors was particularly daunting, as the highly experienced specialized assembly team was faced with high winds, snow and temperatures down to −20° C, as well as the complicated positioning of the glass.
The roof construction’s glass elements were installed with the help of the VIAVAC compact GB-750. In order to accomplish this, the tilting function of the vacuum lifter was used to place the glass in the correct position.
Installing curved glass at the Atrium Tower Amsterdam
A considerable effort is currently under way to renovate the famous Atrium office building in Amsterdam. In addition to the renovation of the current premises, two further towers are being built to expand the office complex. In order to alternate between workplaces and light, open spaces, the company Octatube from Delft is integrating seven winter gardens into in the corners of the towers.
The corners of the winter gardens consist of large, warm, curved glass elements. Octatube hired the VIAVAC compact Curved glass lifter to install these elements. This machine is designed specifically for placing curved glass elements, and can be adjusted to accommodate different radii. In addition, with the VIAVAC compact Curved, the elements can easily be rotated (360°) and tilted (90°) from their transport position.
For this project, Octatube is also using the VIAVAC GBX for the installation of flat glass elements. This glass lifter is suitable for lifting elements up to a weight of 800 kilograms.
Both glass lifters feature two independent vacuum circuits, eliminating the need for safety straps and allowing efficient operation. In addition to the option to rent, VIAVAC also offers the vacuum lifting tools for sale.
In 2016, a lot of hard work was put into building Denmark’s largest stadium, the Royal Arena, a multi-functional indoor stadium in the Ørestad South urban area of Copenhagen. VIAVAC supplied Danish company HS Hansen with the CladBoy compact GB-750 vacuum lifter to assemble the sandwich cladding panels.
The vacuum lifter is suitable for lifting panels up to a weight of 750 kilograms, is very compact and easy to transport, and efficiently handles a variety of assembly jobs.
The arena meets the highest international standards with respect to comfort, acoustics and functionality. The Arena opened in early 2017 and has a capacity of 12,500 spectators for sporting events and up to 16,000 for concerts.
Installation of roof and wall panels for a cold store
For the installation of sandwich roof and wall panels of the cold store building, different VIAVAC vacuum lifters were used. CladBoy CB4 was used for the roofing, and CladBoy compact for the wall panels. The installation work was done by KIM Nederland, leading specialist in modular insulated construction.
The cold store is composed of a 40 m high steel structure with sandwich panels for the roof. The façade has a thickness of 20 cm and panels up to a length of 19 m.
Strict safety requirements on the construction site
For this project, very strict requirements were set concerning safety on the construction site and the working conditions for the employees. The use of VIAVAC vacuum lifters, among other things, made it possible to install the very long and heavy sandwich panels in a safe and efficient way.
The cold store has more than 21,000 pallet places and a fully automated logistics throughput system at an operating temperature of -17 degrees.
The VIAVAC vacuum lifter is used for installing 22m long rock wool sandwich roof panels. The panels (with a thickness of a full 150 mm) weigh 450 kg. For this project, use is made of the CladBoy CB5 with dual vacuum technology.
Safe and efficient Due to the considerable weight combined with the length of the panels, use is made of additional intermediate suction cups in order to achieve a good weight distribution. For the installation team, working with the VIAVAC vacuum lifter was a safe and efficient method for installing the long panels.
